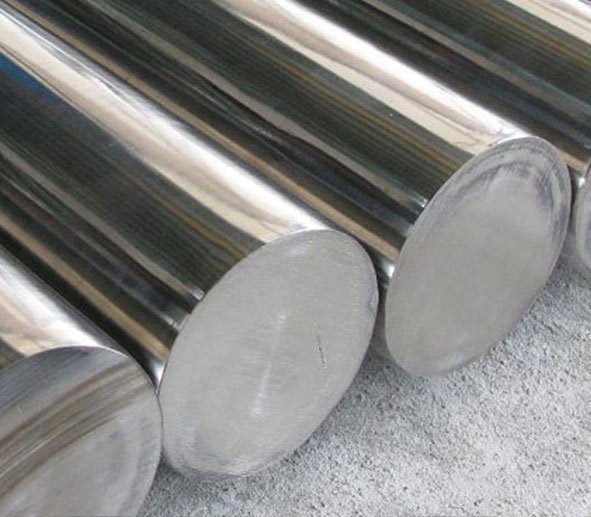

316/316L/316TI Stainless Steel Round Bar
As an acclaimed endeavor of the business, Jainex Steel and Metal is included in offering an immense cluster of Stainless Steel 316/316L/316Ti Round Bars (SS 316/316L/316Ti Round Bars) as a maker, exporter, stockiest and supplier to our local and worldwide customers. Stainless Steel 316/316L/316Ti Bars (SS 316/316L/316Ti Bars) is molybdenum-bearing austenitic steels that is more impervious to basic erosion and setting/cleft consumption than the copy-cat chromium-nickel austenitic steels, for example, Stainless Steel 304.
These Stainless Steel 316/316L/316Ti Rods (SS 316/316L/316Ti Rods) additionally give higher creep, tensile strength and stress-to-rupture at high temperature.
As for national and worldwide nature of crude materials, we additionally offer these UNS S31600/S31603/S31635 Round Bars (otherwise called WNR 1.4401/1.4404/1.4571 Bars) in altered sizes and thicknesses according to particular requests by our regarded customers at business sector driving costs.
316/316L/316TI Stainless Steel Round Bar Specification
| Standard | 316 / 1.4401 316L / 1.4404 316TI/1.4571 | |
| Designation | ASTM, ASME, AISI A 276 , SA 276, A 479, SA 479 | |
| Range | 3 MM TO 350 MM DIA | |
| Finish | Bright, Polish & Black | |
| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. | |
| Application | Food preparation equipment, especially in chloride environments, Chemical processing, equipment, Laboratory benches and equipment, Rubber, plastics, pulp & paper machinery, Pollution control equipment, Boat fittings, value and pump trim, Heat exchangers, Pharmaceutical and textile industries, Condensers, evaporators and tanks. |
Chemical Properties Of 316/316L/316TI Stainless Steel Round Bar:
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
316 (S31600) 316L (S31603) 316TI(S31635) |
0.08max 0.03 max 0.08max |
2.0 max 2.0 max 2.0 max |
0.75 max 0.75 max 0.75 max |
0.045 max 0.045 max 0.045 max |
0.03 max 0.03 max 0.03 max |
min: 16.0 max: 18.0 min: 16.0 max: 18.0 min: 16.0 max: 18.0 |
min: 2.0 max: 3.0 min: 2.0 max: 3.0 min: 2.0 max: 3.0 |
min: 10.0 max: 14.0 min: 10.0 max: 14.0 min: 10.0 max: 14.0 |
0.10 max 0.10 max min: 0.1 max |
Mechanical Properties Of 316/316L/316TI Stainless Steel Round Bar:
The mechanical properties of grade 316/316L/316TI Stainless Steel Round Bar are displayed in the following table.
Grade |
Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
Hardness |
||
Rockwell B (HR B) max |
Brinell (HB) |
|||||
316 (S31600) |
75 |
30 |
40 |
95 |
217 |
|
316L (S31603) |
70 |
25 |
40 |
95 |
217 |
|
316TI(S31635) |
515 (Mpa) |
205 (Mpa) |
35 |
75 |
205 |
|
316/316L Stainless Steel Round Bar Physical Properties
| Density lbm/in3 |
Thermal Conductivity (BTU/h ft. °F) |
Electrical Resistivity (in x 10-6) |
Modulus of Elasticity (psi x 106 |
Coefficient of Thermal Expansion (in/in)/°F x 10-6 |
Specific Heat (BTU/lb/°F) |
Melting Range (°F) |
|---|---|---|---|---|---|---|
| 0.29 at 68°F | 100.8 at 68 212°F | 29.1 at 68°F | 29 | 8.9 at 32 – 212°F | 0.108 at 68°F | 2500 to 2550 |
| 9.7 at 32 – 1000°F | 0.116 at 200°F | |||||
| 11.1 at 32 – 1500°F |
Physical Properties of 316H :
Physical Properties (Room Temperature) |
||
|---|---|---|
Specific Heat (0-100°C) |
500 |
J.kg-1.°K-1 |
Thermal Conductivity |
14.6 |
W.m -1.°K-1 |
Thermal Expansion |
16.5 |
mm/m/°C |
Modulus Elasticity |
193 |
GPa |
Electrical Resistivity |
7.4 |
μohm/cm |
Density |
7.99 |
g/cm3 |
Jainex Steel & Metal exports Stainless Steel 304/304L/304H Round Bars & Rods to countries like UAE, Bahrain, Italy, Indonesia, Malaysia, United States, Mexico, Chine, Brazil, Peru, Nigeria, Kuwait, Jordan, Dubai, Thailand (Bangkok), Venezuela, Iran, Germany, UK, Canada, Russia, Turkey, Australia, New Zealand, Sri Lanka, Vietnam,
South Africa, Kazakhstan & Saudi Arabia.
316/316L/316TI Stainless Steel Round Bar Application
- 316/316L/316TI Stainless Steel Round Bar Used in Tractor
- 316/316L/316TI Stainless Steel Round Bar Used in Automotive Trim
- 316/316L/316TI Stainless Steel Round Bar Used in Stamped Machined Products
- 316/316L/316TI Stainless Steel Round Bar Used in Cookware
- 316/316L/316TI Stainless Steel Round Bar Used in Appliances
- 316/316L/316TI Stainless Steel Round Bar Used in Kitchen
- 316/316L/316TI Stainless Steel Round Bar Used in Foodservice Equipment
- 316/316L/316TI Stainless Steel Round Bar Used in Sinks
- 316/316L/316TI Stainless Steel Round Bar Used in Railway Cars
- 316/316L/316TI Stainless Steel Round Bar Used in Trailers
Packaging:
We Jainex steel & Metal Ensure the best quality of Packing , because its play important role especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put extraordinary concern regarding packaging.
We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as:--
- • Boxes and Crates
- • Shrink-wrapped
- • Carton boxes
- • Wooden pallets
- • Wooden boxes
- • Wooden crates
Testings (Destructive, Non Destructive):
- • Positive Material Identification - PMI Testing
- • Chemical Analysis - Spectro Analysis
- • Mechanical Testing Such as Tensile, Elongation, Reduction of Area
- • Micro Test
- • Macro Test
- • Hardness Test
- • Pitting Resistance Test
- • Intergranular Corrosion (IGC) Test
- • Flaring Test
- • Flattening Test
- • Hydrostatic Test
- • Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
- • Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
- • Radiography Test
- • Dye Penetrant Test (DP Test)
- • Ultra Sonic Test (UT)
- • Eddy Current Testing
- • Impact Test
- • Bend Test
